01
Reflects Radiant Heat
The low-emittance aluminium surface helps reduce radiant heat transfer from a hot roof towards the occupied area.
INSULATION PRODUCTS
Air Bubble Insulation
Lightweight reflective insulation designed to help manage radiant heat in industrial roofs, warehouses, PEBs and commercial buildings.
PRODUCT OVERVIEW
Air Bubble Insulation at a Glance

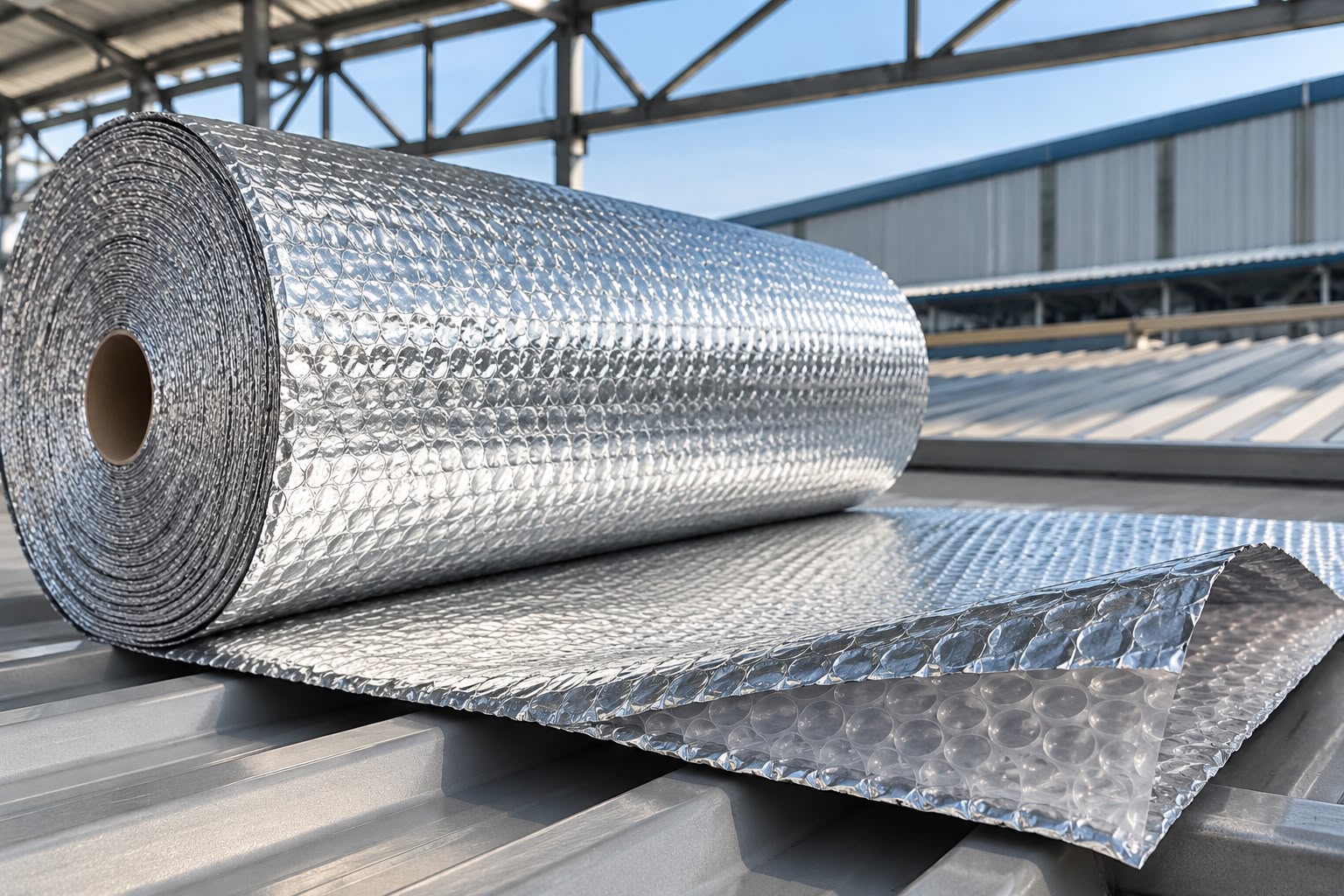

Air Bubble Insulation is a lightweight reflective insulation material made from sealed polyethylene air bubbles laminated with aluminium foil. It is supplied in roll form for suitable roof, wall, ceiling and under-deck applications.
The reflective foil helps reduce radiant heat transfer, while the enclosed air bubbles create a trapped-air layer that helps slow heat movement through the building assembly.
01Reflective aluminium foil facing
02Closed-cell, fibre-free PE bubble layers
03Lightweight roll format
04Multiple thickness and layer options
HOW IT WORKS
Reflective Protection for Metal Roofs
Correct performance depends on the complete roof or wall assembly, adjacent air space, joint sealing and installation quality.
02
Uses Sealed Air Pockets
The polyethylene bubble core creates a lightweight trapped-air layer that helps resist heat movement.
03
Supports Continuous Coverage
Properly treated seams, edges and penetrations help create a more continuous insulation layer.
APPLICATIONS
Where It Can Be Used
Suitable applications depend on the roof design, climate, installation position and operational requirements.

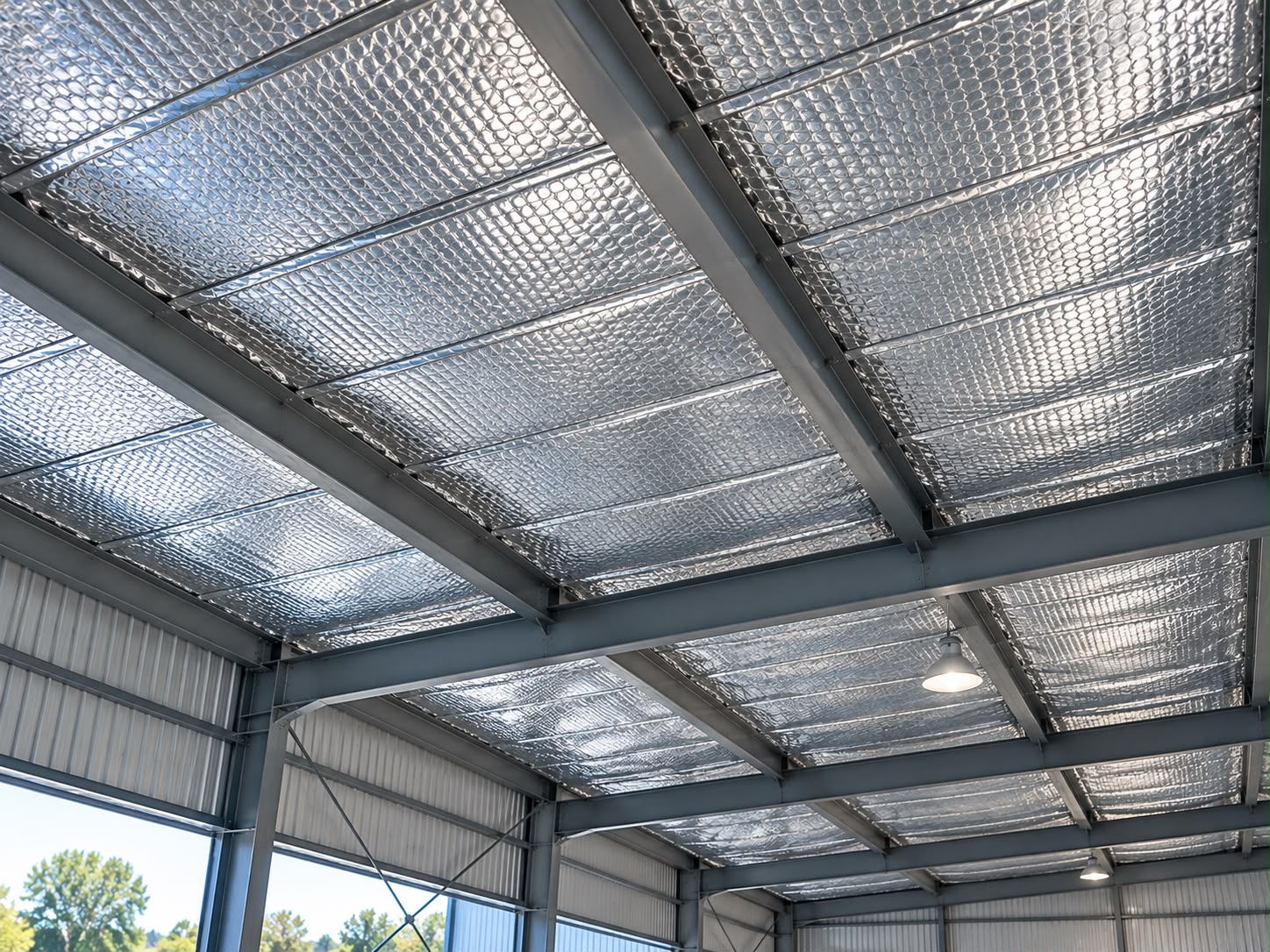

Factories & Industrial Sheds
Helps limit radiant heat transfer through metal roofing.

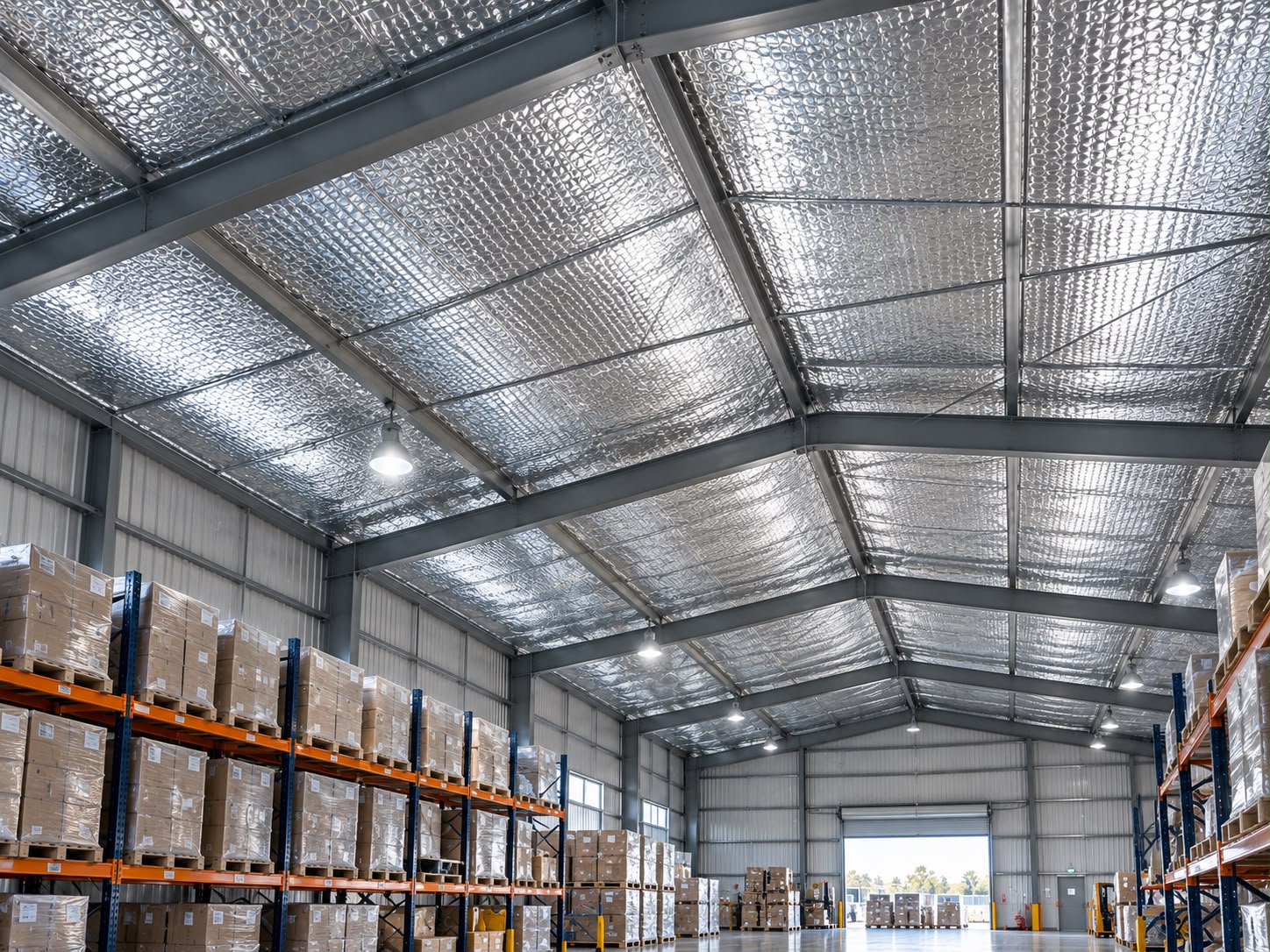

Warehouses & Logistics Buildings
Supports more stable interior conditions for operations and stored materials.

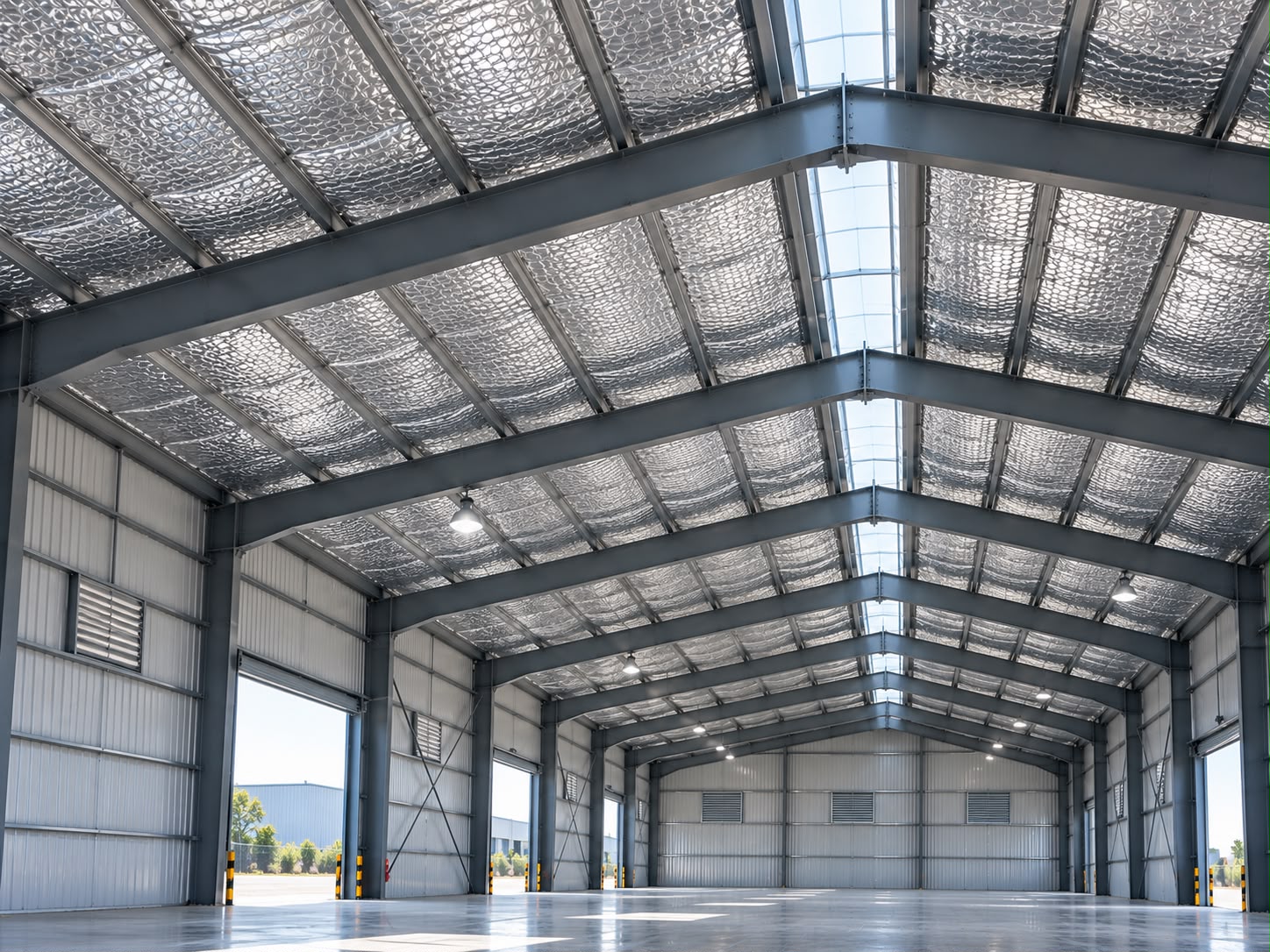

PEBs & Metal Buildings
Can be incorporated into suitable pre-engineered roof and wall systems.

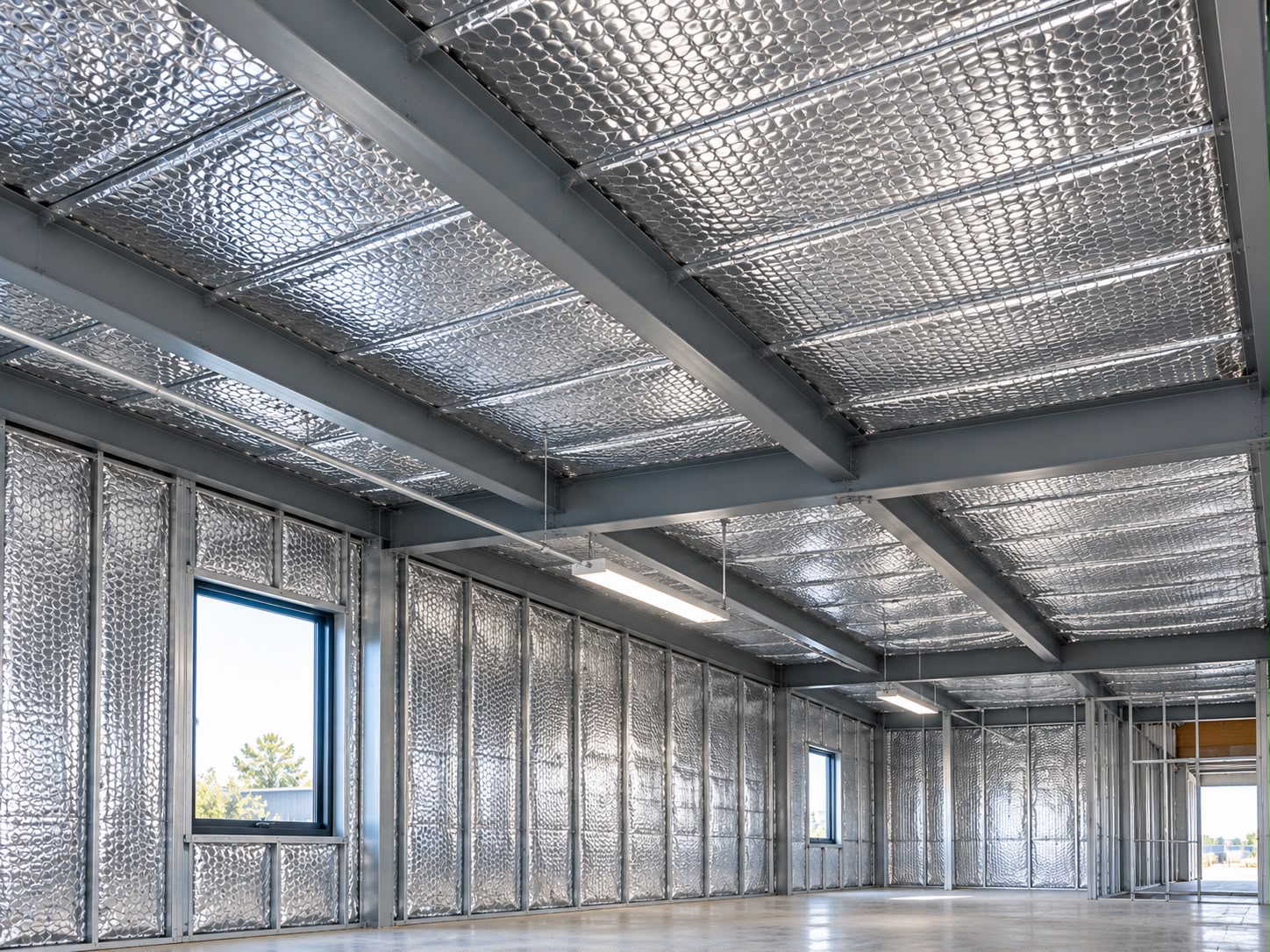

Ceilings, Walls & Under-Deck
Can be installed within suitable ceiling, wall and under-deck assemblies.

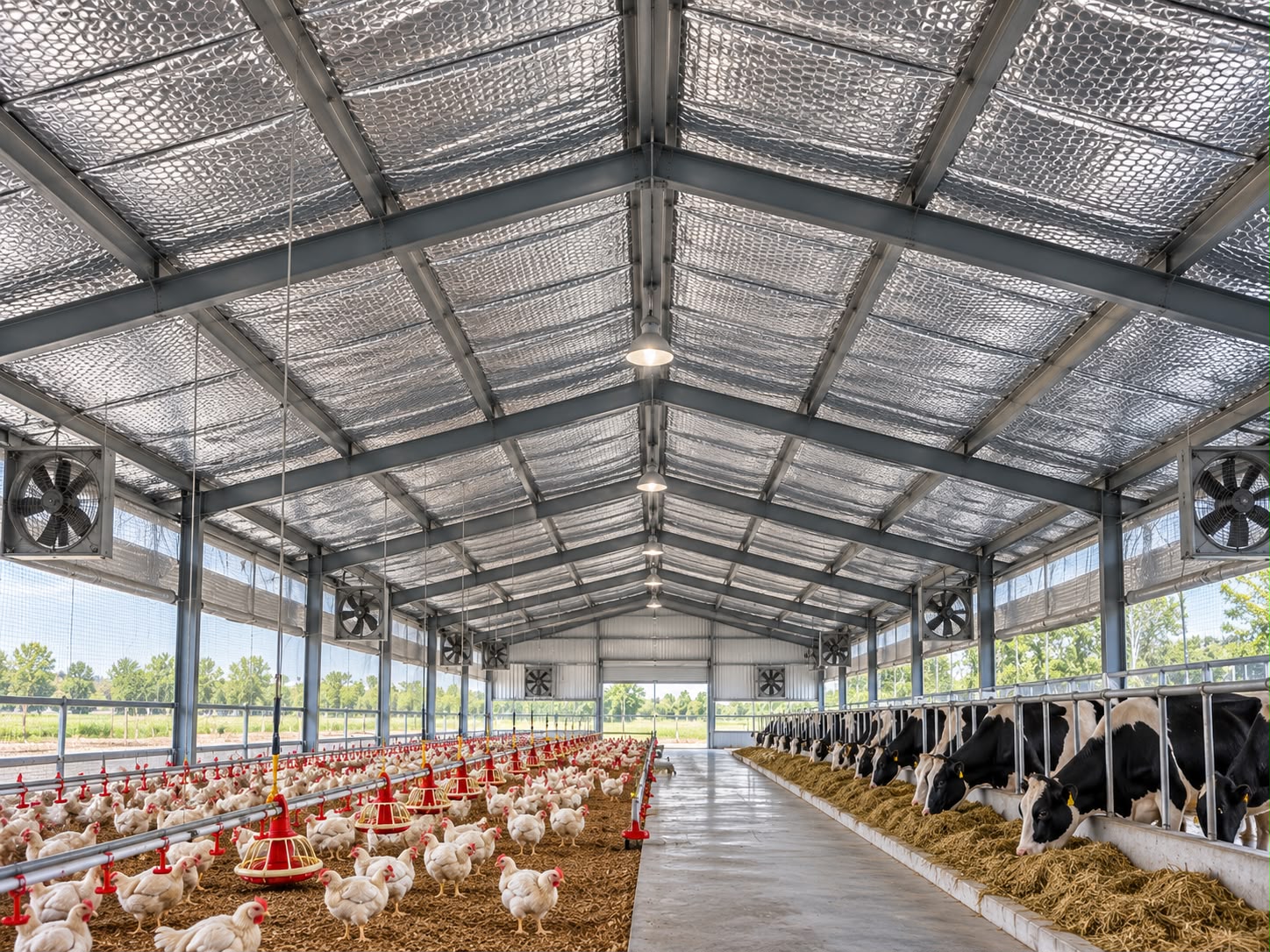

Poultry & Dairy Sheds
Suitable for selected metal-roof shed assemblies where heat control is required.
PRODUCT INFORMATION
Available Thickness Options
Available variants should be selected according to the roof assembly, available air space, installation method and project requirements.
4 mmCompact reflective option
6–10 mmCommon roof and shed options
12–14 mmThicker double or multi-layer options
16–20 mmProject-specific higher-thickness options
